PrecisionCore MicroTFP
Dual Epson i1600-A1 Printheads
It delivers the same photographic sharpness, fine text, and vibrant color gradients.
Click to zoom

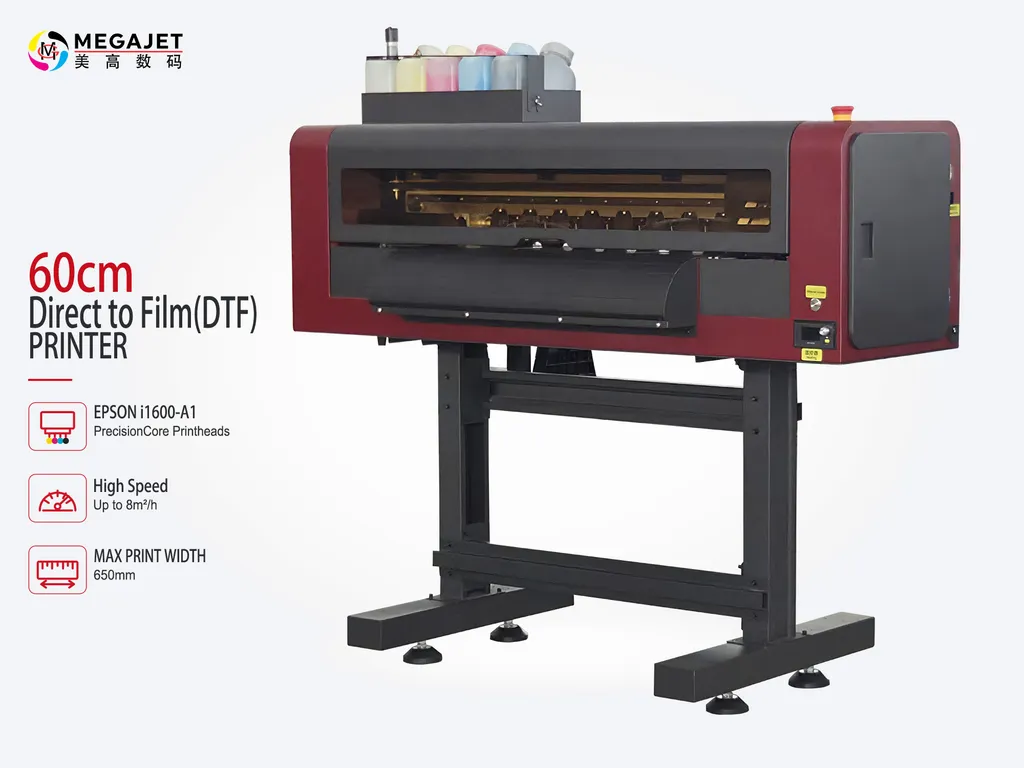

60 cm DTF Printer — 2× Epson i1600-A1
In Stock & Ready to Ship
Factory-direct 60cm commercial DTF printer powered by dual genuine Epson i1600-A1 printheads and Hosonsoft control board. Engineered for low startup costs, stable 8 m²/h output, and 24/7 garment transfer production.
Key Specifications
- Print Head: 2 × Epson i1600-A1
- Control System: Hosonsoft Control Board
- Production Speed: 8 m²/H
- Max Print Width: 650 mm (Feed 700 mm)
T-shirts & PolosSportswear & ActivewearHoodies & JacketsCanvas Tote BagsWorkwear & Uniforms
Key Capabilities
Built for Stable Production
Core engineering features designed for high-uptime printing, lower printhead replacement costs, and easy dealer servicing.

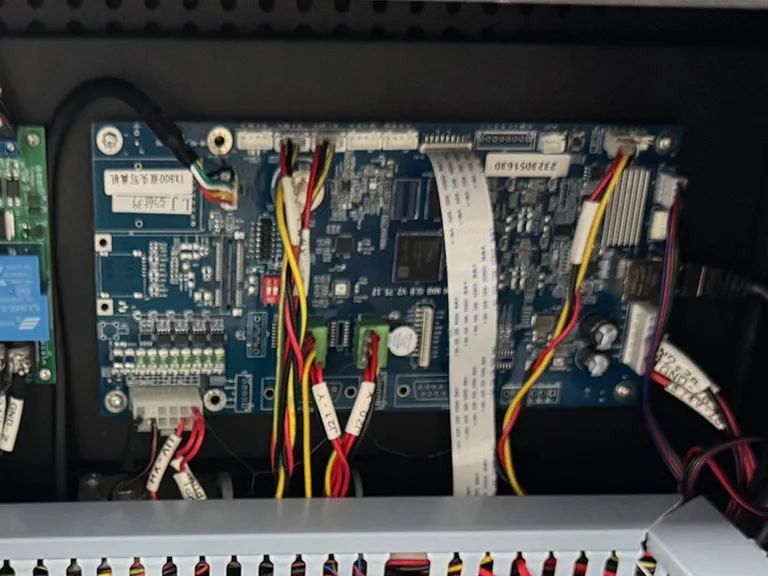

Industrial Electronics
Hosonsoft System
High-speed transmission eliminates electrical interference and latency across long print runs.

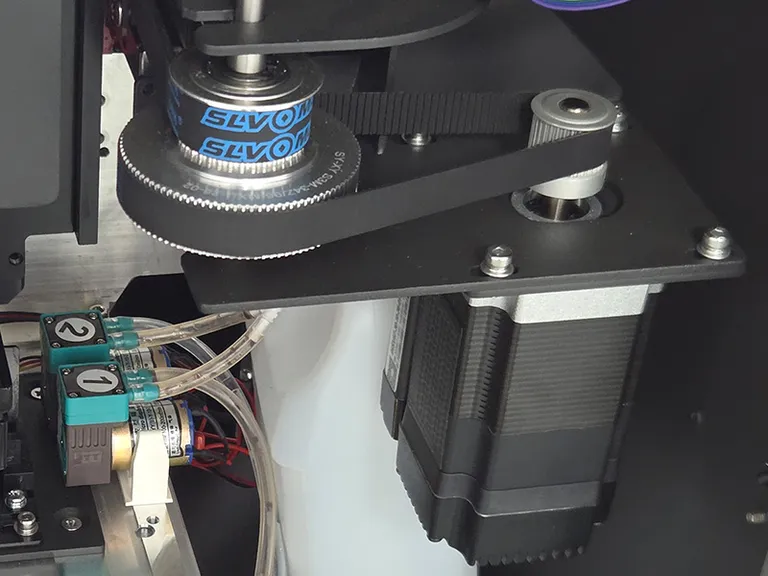

Chassis & Motion
Integrated Servo Motor
A high-torque servo drive maintains carriage positioning accuracy.
Production Applications
Where It Fits Your Workflow
Engineered for high-precision transfer across a vast spectrum of fabrics, finished goods, and commercial apparel lines.
Custom Material & Fabric Testing
Don't see your specific application above? Send us your fabric or material for a free print test.
Our engineering team will run actual production test prints on your provided substrates, verify color accuracy and wash durability, and mail the finished samples back for your evaluation.
Technical Specifications
Specifications at a Glance
Standard engineering parameters, delivery contents, and matching options confirmed with every order.
01 Print System

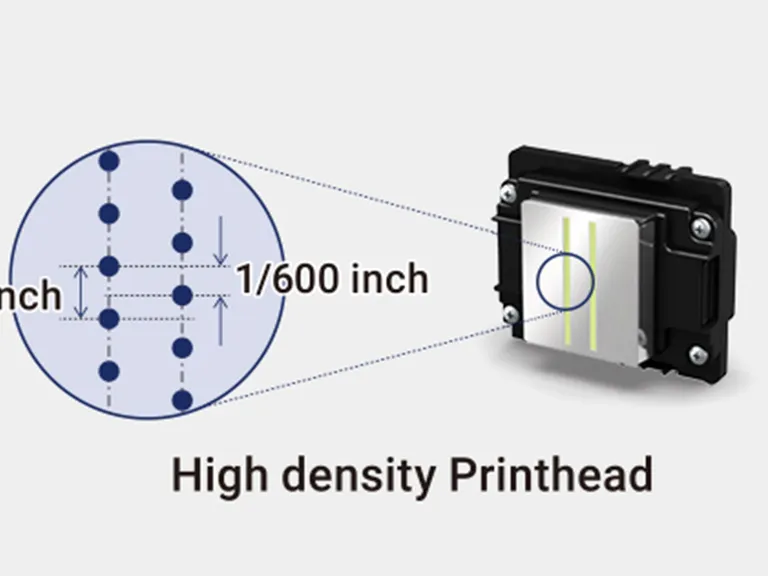

Technical Specification Printhead
2 × Original Epson i1600-A1 (PrecisionCore MicroTFP)
Nozzle Configuration
1,600 nozzles per head (4 rows × 400 nozzles)
Effective Print Width
600 mm (24 inches) / media loading up to 700 mm
Ink Compatibility
Water-based DTF textile pigment ink (CMYK + White)
Ink Supply & Circulation
Continuous bulk ink system with motorized tank agitation & automated timed pump circulation
Control Board
Hosonsoft Board System
Resolution
Up to 2400 DPI (720×1200 / 720×1800 / 720×2400 DPI)
Production Speed
~8 m²/h (Standard 6-pass production mode); ~6 m²/h (High-density 8-pass mode)
02 Production Fit & Workflow
Technical Specification Printing Process
Direct to Film (DTF) transfer onto PET film rolls
Substrate Compatibility
Cotton, polyester, poly-blends, denim, nylon, leather, canvas & workwear fabrics

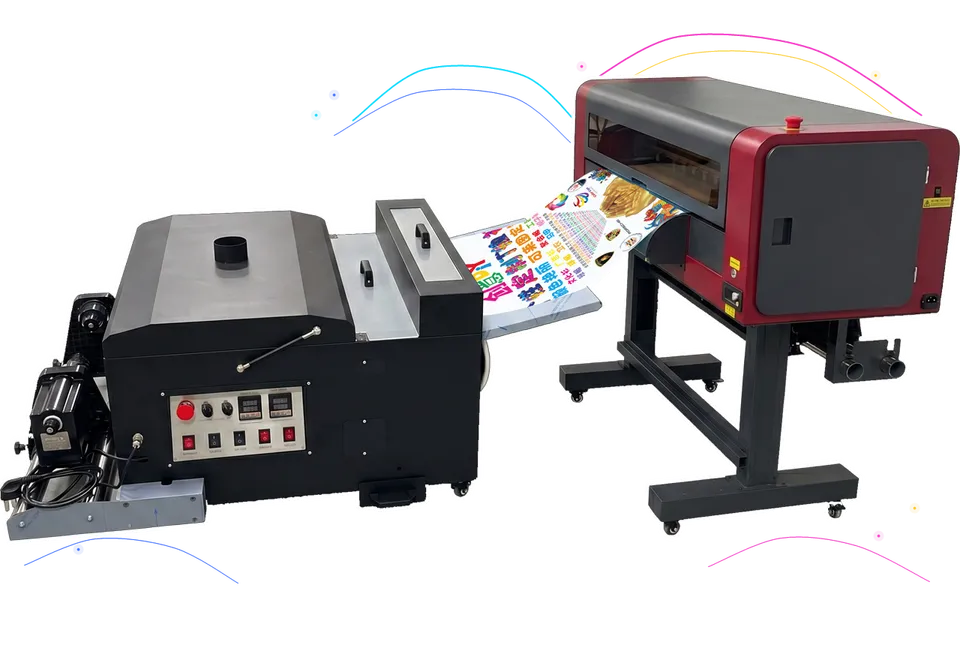

Recommended Production Line
Megajet 60cm DTF Printer + Matched Automatic Powder Shaker/Dryer + Industrial Air Purifier
RIP Software Compatibility
Photoprint (FlexiPRINT), Maintop, Riin
Operating Environment
Temperature 18–28°C (64–82°F), Humidity 45–65% RH
Power Requirements
AC 220V / 110V, 50/60 Hz, Single Phase (Printer ~300W)
03 Standard Delivery & Recommended Options
What's IncludedStandard Delivery (What's in the Box)
- Megajet 60cm industrial printer platform with Hosonsoft System.
- Dual Epson i1600-A1 printhead assembly pre-installed with precision CNC brackets
- Full white ink management system: automated timed loop circulation + tank stirring motor
- Multi-stage intelligent heating platen with embedded vacuum suction bed
- Complete starter kit: ink dampers, capping tops, syringe, cleaning sticks & optical cables
Optional & Matched Equipment
- Factory-matched 60cm automatic powder shaker & infrared curing tunnel
- Multi-stage electrostatic air purifier and oil-smoke filtration extractor
- Megajet genuine DTF textile pigment inks (CMYK + High-opacity White)
- Premium cold/hot peel PET transfer film rolls (60cm × 100m) & elastic TPU hot-melt powder
- Regional distributor spare-parts pack (Hosonsoft boards, servo motors, dampers, cables)
Need complete technical dimensions, power schematics or warranty terms?
Dimensions, gross weight, electrical requirements, and packaging details are confirmed per configuration in the official quotation.
Factory Tour & QC
Inside Our 3,000m² Manufacturing Facility
Every Megajet printer undergoes 72-hour continuous aging burn-in testing and live artwork test-printing with physical printheads before export packout in solid plywood crates.
500+ Units
Monthly Assembly Output
Stable supply for container and batch orders.
72h Aging
Pre-Packout Live QC
72h continuous burn-in + physical heads installed for test printing before packout.
Swipe to browse · tap any photo to enlarge Hover to pause · click any photo to enlarge
1
Precision structural assembly
2
72-hour continuous aging burn-in
3
Reinforced solid plywood crate packaging
Business Advantages
Why Regional Dealers & OEM Partners Choose Megajet
As a direct manufacturer, we provide regional distributors with factory-direct pricing, custom OEM production, spare-parts allowances, and direct 1-on-1 engineer training.
Factory-Direct Pricing
Competitive manufacturer-direct pricing for your margins and long-term territory distribution.
Private Label & OEM
Custom frame paint colors, logos and custom packaging for volume and container orders.
Territory Protection
Authorized regional partnership with dedicated territory protection and verified local inquiry forwarding.
Success Stories: Real Results
From first market entry to long-term growth, see how distributors, OEM partners, and print businesses work with MEGAJET through factory-direct supply, responsive technical support, and a complete product portfolio—building stronger local operations and serving their customers with confidence.
Lagos Dynamics
Lagos, Nigeria
The Challenge
"Struggling as an middleman with low margins and lack of technical support for high-end clients."
The Partnership
Authorized Megajet Partner with direct factory parts & remote engineering training.
300% Margin Boost Transitioned to Direct Brand Partner
EuroPrint Hub
Nicosia, Cyprus
The Challenge
"Needed an OEM partner capable of strict EU environmental compliance and private labeling."
The Partnership
OEM Partnership with full products.
Tier-1 Supplier Status Serving 50+ local agencies
Indo-Graphic Solutions
Mumbai, India
The Challenge
"High machine failure rates leading to brand reputation loss in the textile market."
The Partnership
Standardized on Megajet industrial printers with lifetime tech support.
99% Reliability Rate Zero service calls in 12 months
Global Import & Compliance
Need Specific Certificates or Documents for Your Country?
Every market has unique import rules. Tell us your destination country and what paperwork you need (such as CE compliance, Certificate of Origin, test reports, or custom voltages)—our export team is ready to prepare tailored compliance support for your shipment.
Reply within 24h · Free clearance guidance
Customs Clearance Docs
CO, Form E, Origin certs, CI & PL prepared for fast destination customs clearance.
Global Voltage & Grid
Factory customized 110V / 220V / 380V power systems with regional industrial plugs.
72-Hour Aging & Testing
Continuous burn-in print inspection and serial-matched factory calibration records.
Destination Assistance
Technical schematics & documentation support for local commercial inspections.
Direct Manufacturer FAQ
Frequently Asked Questions
Clear answers about production, shipping, warranty, training, maintenance, sample testing, consumables and OEM cooperation.
What is the standard production lead time and international shipping arrangement? +
Standard configuration machines are typically tested, packed, and dispatched within 3 to 7 working days. For custom configurations (e.g., custom voltages, special powder shakers, or OEM exterior colors), production takes approximately 10 to 15 working days. All printers are packed in reinforced, export-grade fumigation-free wooden crates. We support multiple trade terms (FOB, CIF, CFR, DDP, and EXW) via ocean container, LCL cargo, or international air freight.
What warranty is provided, and how does the warranty claim process work? +
We offer a comprehensive 1-Year Factory Warranty covering all major non-consumable electronic and mechanical components (mainboards, head boards, servo motors, guide rails, power supplies, and control systems). In the event of any hardware anomaly, our engineering team conducts fast remote diagnostics via AnyDesk/Teamviewer, and replacement parts are air-expressed immediately. Lifetime technical support and at-cost spare parts supply remain available beyond the warranty period.
How is after-sales technical support, machine setup, and operator training delivered? +
Every machine has operation manuals, setup video tutorials, some spare parts, RIP color profiles and more. Our dedicated service engineering team provides 1-on-1 remote onboarding via WhatsApp/WeChat/Teamviewer/AnyDesk, assisting your team with unboxing, software calibration, daily maintenance routines, and test printing. We offer responsive technical assistance within 24 hours across global time zones.
What daily and weekly maintenance is required to keep printheads and ink systems in peak condition? +
Daily maintenance requires just 5–10 minutes: performing automated nozzle checks, keeping the capping station clean, and ensuring the integrated white ink circulation and stirring system is active. For weekly upkeep, clean the wiper blade and encoder strip with lint-free swabs and dedicated cleaning fluid. If the printer will sit idle for over 3 days, simply use our moisturizing liquid in the capping station to prevent nozzle clogging. You can contact our engineer any time to get guidance.
Can we request free test sample printing on our own fabrics or designs before ordering? +
Yes, absolutely. We encourage prospective distributors and buyers to send us their vector artwork or physical fabric substrates. Our factory engineers will run live production prints on matching materials such PET Film/UV ab Film, cure the samples, inspect color reproduction and wash fastness, and provide high-resolution photos, inspection videos, or express mail physical transfer samples directly to your address for hands-on evaluation.
Can you supply turnkey consumables (inks, PET films, hot-melt powders) and spare-parts kits? +
Yes. To ensure optimal print performance and avoid the risk of incompatible supplies, we offer factory-matched turnkey consumables—including high-density eco solvent/sublimation/pigment/uv inks, hot/cold peel PET films, and fine/medium TPU powders, AB films and more. We also provide recommended 'Service Starter Kits' (extra dampers, capping stations, wiper blades, ribbon cables, pumps, and maintenance fluids) with your container shipment to minimize local machine downtime.
Do you support OEM / ODM branding, custom frame colors, and distributor territorial protection? +
Yes. As a direct manufacturer, we welcome volume OEM/ODM cooperation. For qualifying order quantities, we support custom powder-coated chassis colors, silk-screened brand logos, custom software/RIP start screens, and private-label packaging. We also offer regional dealer agreements with territorial marketing support, prioritized factory spare parts dispatch, and competitive tier pricing for exclusive partners.
